Liquid-Shim MM1018 FL — fluid version
Liquid-Shim MM1018 FL — fluid version
MM1018 – The Liquid-Shim® – is a highly filled metal polymer for full-surface and
force-fit compensation and filling of inaccuracies and unevenness between metal
elements such as end plates, bridge bearings, crane runways and rail guides as
well as steel components. Due to its high dimensional stability, MM1018 is also
suitable for use in preloaded connections. More than 2.000 structures worldwide
already stand on the Liquid-Shim®, DIAMANT MM1018.

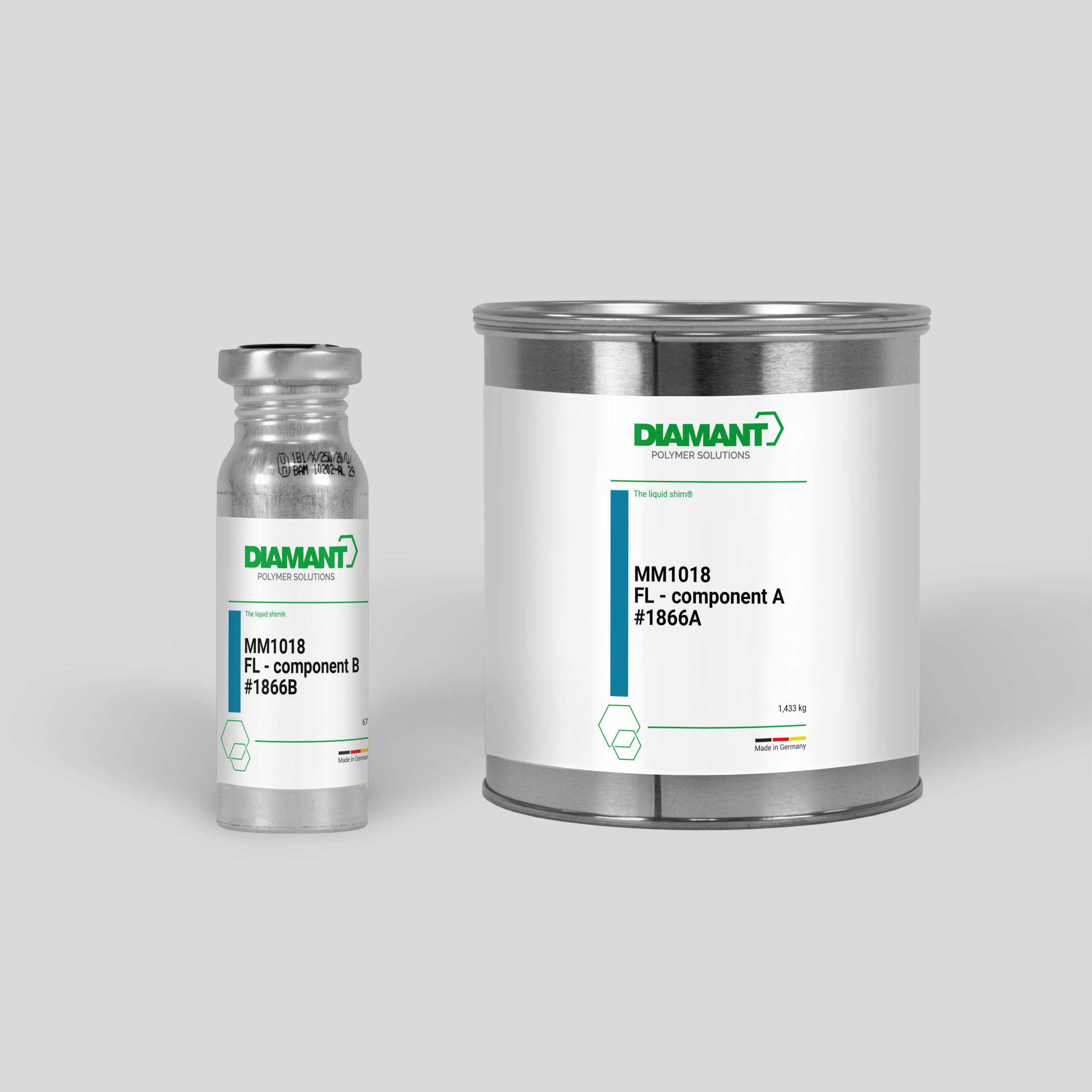

MM1018 FL: Liquid variant for casting or injecting. Product cures at
room conditions. Compressive strength of up to 160 N/mm2.
MM1018 FL (liquid) is a product with general building approval (abZ) approval
number: Z-3.82-2042 (link to abZ).
The innovative gap filler MM1018 is available in both a paste and a liquid version and can be easily and efficiently filled onto the component surface or injected directly into the existing gap. These flexible application options ensure a strong, durable bond.
• Very high compressive strength
• Low creep properties
• Fatigue strength up to 10 million load cycles (proof of strength for steel)
• Fast curing
• Resistant to corrosion and weathering
• Injection or grouting for almost any gap situation
• General building approval (abZ)
• Seawater-resistant, stainless
Gap compensation, force-fit connection to
• Head plate joints
• Bridge bearings
• Crane and guide rails
• Silos
• Steel hydraulic engineering structures
• Steel construction and structural steel engineering
• Tunnelling
for steel-steel and steel-concrete joints.
MM1018 – The Liquid-Shim®
• Always fits
• Saves time and costs
The innovative gap filler MM1018 is available in both a paste and a liquid version and can be easily and efficiently filled onto the component surface or injected directly into the existing gap. These flexible application options ensure a strong, durable bond.
Reliable power transmission for every connection
The system adapts to any gap geometry and ensures a full-surface connection. It can be used directly on the construction site without the need for mechanical processing. Thanks to its high corrosion resistance and durability, it offers a reliable solution. With a compressive strength of over 160 N/mm², it is one of the strongest compensation systems and is also suitable for pre-stressed connections.
Partners
Technical Documents

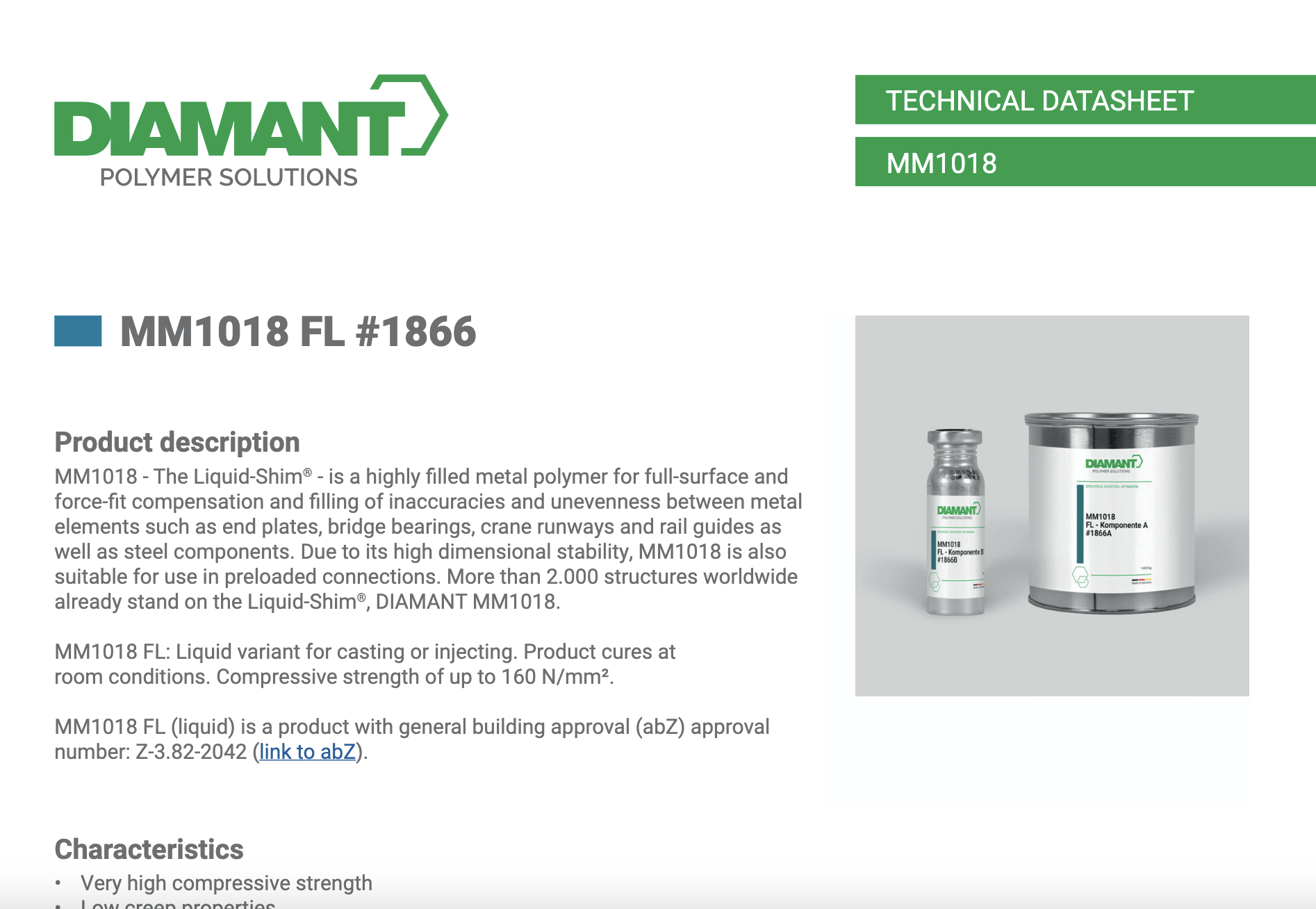

DIAMANT_TD_MM1018-FL

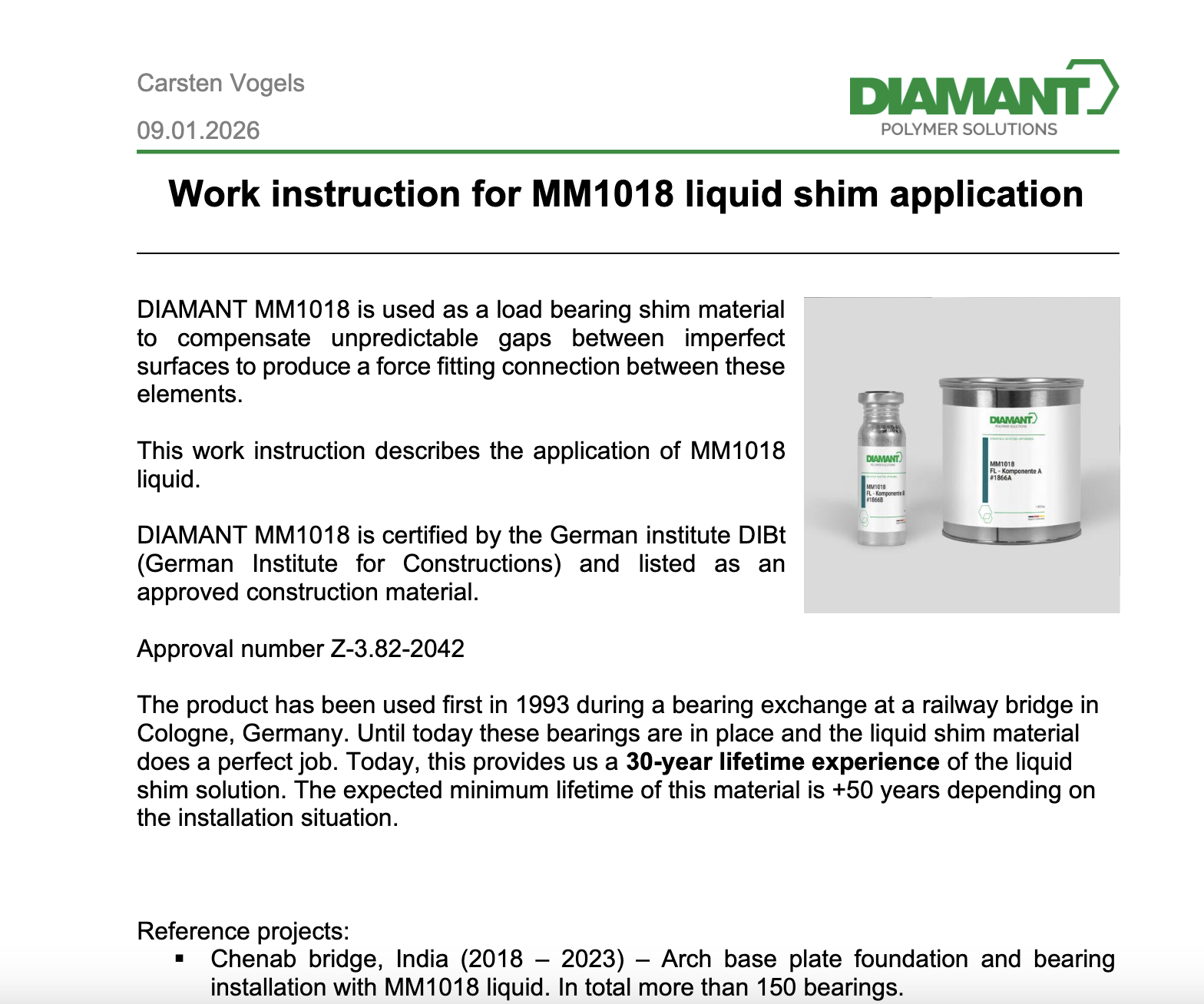

Application method_MM1018 FL
